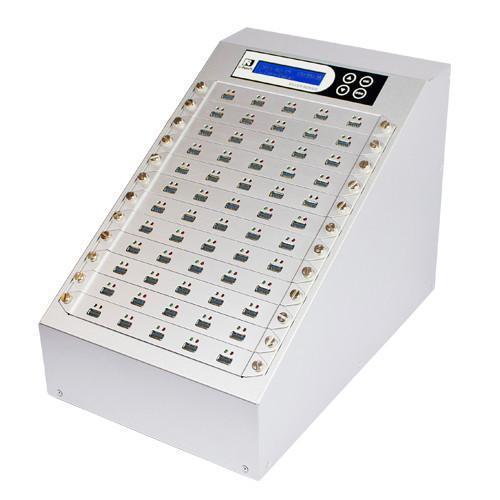

USB Duplicator & Sanitizer - High Speed USB 3.0/3.1

  • Description
  • Features
  • Specifications
  • Intelligent Copy Option

  • Systems and Files (Quick Copy Mode)
1. The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
2. This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to "whole media copy" mode.
  • Whole Media

1. The duplicator copies from the initial sector to the end, bit-by-bit.
2. There are no format limitation in this mode.

Illustration of Copy Modes

The areas containing data are marked in blue. The areas being copied are marked in red. The actual copying time depends on the speed supported by the device for copying.

Impeccable High Speed

U-Reach USB drive duplicator can copy up to 3GB/min on all devices, simultaneously and without any speed degradation as number of targets increase.

User-Friendly Design

  • Modular Sockets

Interfaced sockets are subjected to wear-and-tear caused by frequent connections and disconnects. Modular sockets enable quick replacements while reducing downtime, effectively making this solution a long-term and cost-effective ownership.

  • Ergonomic & Compact Proportions

The refined ergonomic proportion reduces the flash duplicator by 50% to 70% compared to traditional chassis design.

Support High Compatibilities with Various USB Devices

Due to unique redundant power design, it can support special medias with sufficient power supplies, such as: USB 2.0/3.0 external USB hard drives, MP3 players, etc.

Quality Testing/Checking Functions

U-Reach flash memory duplicator/sanitizer has built-in functions to inspect flash devices. It helps the user to identity and remove poor quality USB drives.

H3 Read Only Test
Determines if the flash is readable. This test will not modify pre-existing data.

Capacity Check
Verifies initial sector and the final sector the connected flash device within 2 seconds.

H5 Write/Read Test
Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, then devices are formatted into FAT.

Read/Write Speed Check
This function performs a read/write benchmark of the connected devices within 8 seconds.

H6 Quality Test
Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.

Flash Speed and Capacity Filtration

Sets limit on lowest reading and writing speed and picks up Flash devices that are below the setting speed.

Sets "target tolerance". Picks up Flash devices that have exceeded the tolerance range.

Real-Time Monitoring

Monitor real-time status via PC through USB cable link.

  • Features Descriptions
    Operation Type ● Stand-alone, FPGA-based operation (Non-PC based system design).
    Controller Design

    ● Embedded controller is designed to support capacities up to 2TB.

    ● Constant improvement supports latest market-available devices.

    Bandwidth Performance

    ● Peak transfer speeds up to 3.0GB/min. (50MB/sec.)

    ● Dedicated bandwidth enables high-volume replications without speed degradation.

    Read-Only Source Port ● There are no options to disable this built-in feature and it is integrated
    with all U-Reach duplicators.
    Modular Socket Design ● Modular-designed ports effectively reduce downtime and is cost-effective
    for long-term ownership.
    Real-Time PC Monitoring ● View live status for: writing/reading speeds, total capacity, and current
    function progress by individual ports.
  • Specifications Descriptions
    LCD Display ● 2x20 Backlit Monochrome LCD Display
    LEDs ● 2 LED Indicators per Port:
    ● Green (Pass) and Red (Fail)
    Control Panel ● 4 Push Buttons (▲, ▼, OK, ESC)
    Power Requirements ● Power Adapter Input: 100-240VAC / 47-63Hz / 1.6A Max. ● Power Adapter Output: 12VDC / 9A for UB910H (10-Ports) ● Power Adapter Output: 12VDC / 12.5A for UB9XXH (20-Ports and Higher) ● Each USB 3.0 Port supports up to 2A
    Operational Temperature ● 5°C ~ 45°C (41°F ~ 113°F)
    Non-operational Temperature ● -20°C ~85°C (-4°F ~ 185°F)
    Humidity ● Operating: 20% ~ 80%, non-condensing
    ● Non-operating: 5% to 95%, non-condensing
    Physical Dimensions (L×W×H)

    ● UB910H – 406.4 mm x 330.2 mm x 292.1 mm (16 in. x 13 in. x 11.5 in.)

    ● UB920H – 406.4 mm x 330.2 mm x 381 mm (16 in. x 13 in. x 15 in.)

    ● UB930H – 419.1 mm x 381 mm x 355.6 mm (16.5 in. x 15 in. x 14 in.)

    ● UB940H – 457.2 mm x 419.1 mm x 406.4 mm (18 in. x 16.5 in. x 16 in.)

    ● UB960H – 508 mm x 381 mm x 419.1 mm (20 in. x 15 in. x 16.5 in.)

    ● UB9120H – TBA

    Product Weight

    ● UB910H – 4.99 kg (11.0 lbs.)

    ● UB920H – 6.12 kg (13.5 lbs.)

    ● UB930H – 7.48 kg (16.5 lbs.)

    ● UB940H – 9.53 kg (21.0 lbs.)

    ● UB960H – 12.70 kg (28.0 lbs.)

    ● UB9120H – 25.4 kg (56.0 lbs.)

    Certifications ● FCC, CE, RoHS, REACH
